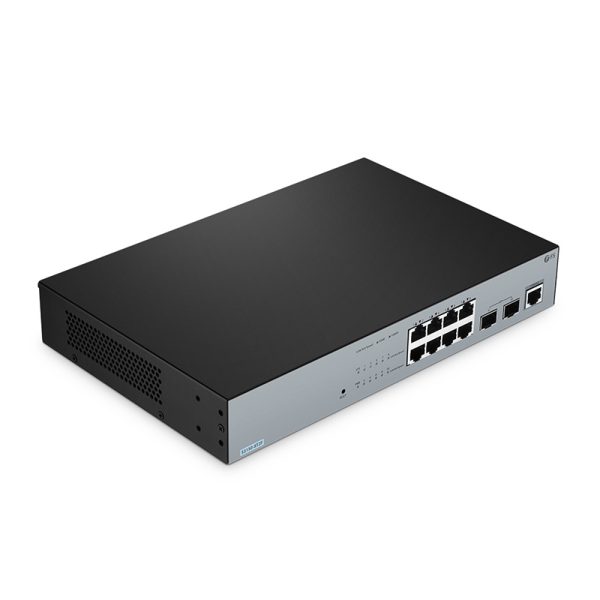

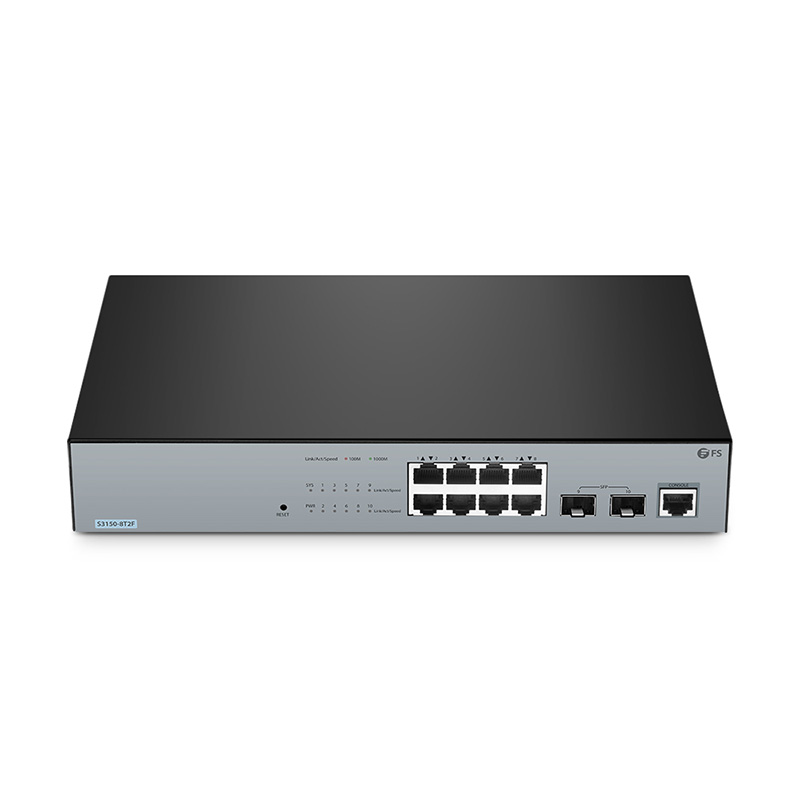

S3150-8T2F, 8-Port Gigabit Ethernet L2+ Switch, 8 x Gigabit RJ45, with 2 x 1Gb SFP, Fanless

The S3150-8T2F 8-Port Ethernet L2+ Switch, boasting 8x Gigabit RJ45 and 2x 1Gb SFP Uplinks, comes with an impressive 20 Gbps switching capacity and a 15 Mpps forwarding rate. Enhanced with full VLAN support for traffic segmentation, this managed enterprise switch offers robust network partitioning capabilities, crucial for improving performance and security. Based on the high-performance hardware and FSOS platform, it facilitates essential functions such as ACL, QinQ, and QoS. Its accessibility, simplified management, and flexible installation make it an ideal fit for the complexities of the carrier’s IP MAN and enterprise networks.

Specifications
Ports
8x 10/100/1000BASE-T RJ45 | 2x 1G SFP
Switching Capacity
20 Gbps
Power Supplies
1 Built-in, AC
Forwarding Rate
15 Mpps
Fans
Fanless
Packet Buffer
0.5MB
Dimensions (HxWxD)
1.73”x11.02”x7.08” (44x280x180mm)
Jumbo Frame
9K
Weight
3.41 lbs (1.55kg)
MAC Address
8K
Input Voltage
100-240VAC, 50-60Hz
IPv4/IPv6 Routes
128/64
Input Current
0.75A
Number of VLANs
4,000
Max. Power Consumption
8.6W
RAM
128MB
Operating Temperature
0 to 50ºC (32 to 122°F)
Flash Memory
16MB
Please Note: Matching the European standard power cord as default. If you need other standard power cords, please note in the order or contact your account manager.

Software Spotlights

Resiliency and High Availability

IEEE 802.3ad Link Aggregation (LACP)

Uni-directional Link Detection (UDLD)

Ethernet Ring Protection Switching (ERPS)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Security

IEEE 802.1x, Radius and TACACS+ perfect security authentication mechanisms

Storm/multicast/unicast limit

Perfect ring detection mechanism

IP Source Guard, DoS Protection, Anti-attack from DDoS

L2/L3/L4 ACL flow identification and filtration

Dynamic Arp Inspection

See more

Management

CLI via console port or Telnet

Web management

SNMP v1, v2c, v3

Firmware upgrade and configuration file upload/download via TFTP/HTTP/FTP server

Dual images (SPAN, RSPAN), multiple configuration files

Firmware auto upgrade RMON

LLDP (802.1ab)

See more

Quality Certifications
To get the detailed certification, please go to the .

ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please to learn more.

ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).

This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please to learn more.

This product is in conformity with ISO14001. It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please to learn more.

This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please to learn more.

This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please to learn more.

This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please to learn more.
