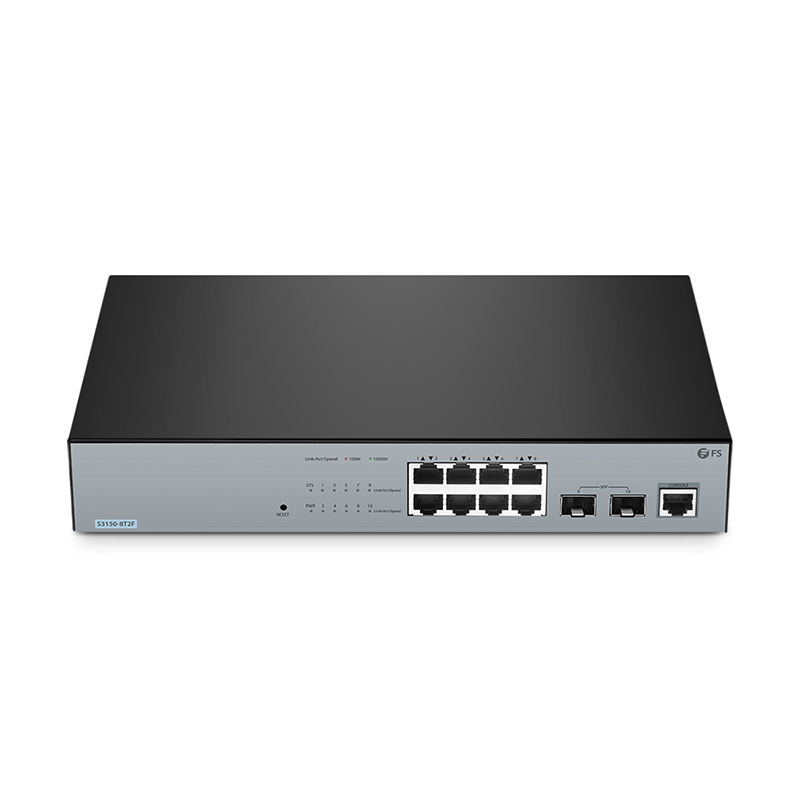

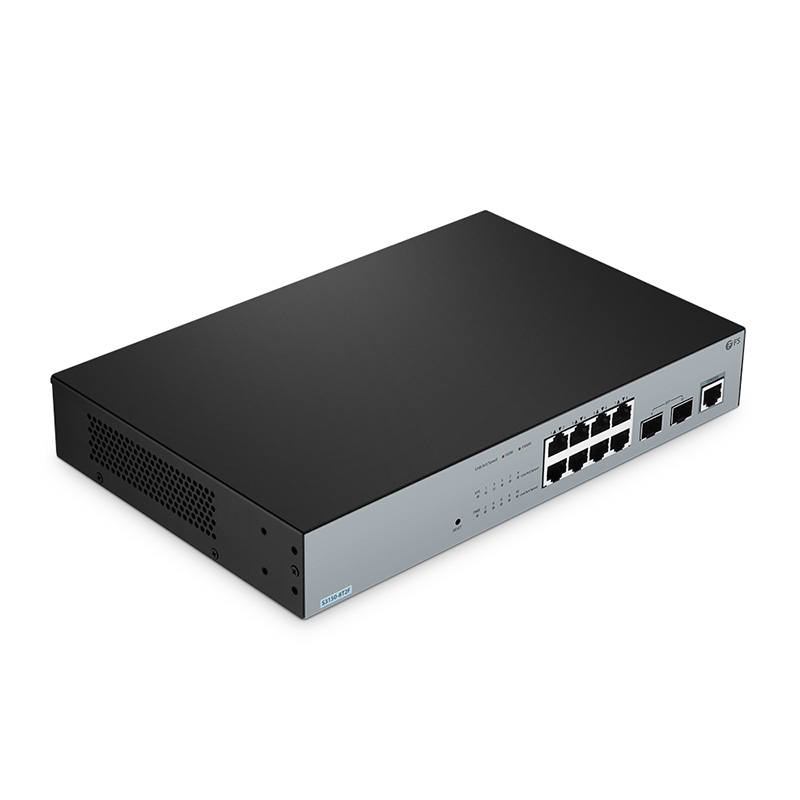

S3150-8T2F, 8-Port Gigabit Ethernet L2+ Switch, 8 x Gigabit RJ45, with 2 x 1Gb SFP, Fanless

The S3150-8T2F 8-Port Ethernet L2+ Switch, boasting 8x Gigabit RJ45 and 2x 1Gb SFP Uplinks, comes with an impressive 20 Gbps switching capacity and a 15 Mpps forwarding rate. Enhanced with full VLAN support for traffic segmentation, this managed enterprise switch offers robust network partitioning capabilities, crucial for improving performance and security. Based on the high-performance hardware and FSOS platform, it facilitates essential functions such as ACL, QinQ, and QoS. Its accessibility, simplified management, and flexible installation make it an ideal fit for the complexities of the carrier’s IP MAN and enterprise networks.

Specifications
Ports
8x 10/100/1000BASE-T RJ45 | 2x 1G SFP
Switching Capacity
20 Gbps
Power Supplies
1 Built-in, AC
Forwarding Rate
15 Mpps
Fans
Fanless
Packet Buffer
0.5MB
Dimensions (HxWxD)
1.73”x11.02”x7.08” (44x280x180mm)
Jumbo Frame
9K
Weight
3.41 lbs (1.55kg)
MAC Address
8K
Input Voltage
100-240VAC, 50-60Hz
IPv4/IPv6 Routes
128/64
Input Current
0.75A
Number of VLANs
4,000
Max. Power Consumption
8.6W
RAM
128MB
Operating Temperature
0 to 50ºC (32 to 122°F)
Flash Memory
16MB
Please Note: Matching the European standard power cord as default. If you need other standard power cords, please note in the order or contact your account manager.

Software Spotlights

Resiliency and High Availability

IEEE 802.3ad Link Aggregation (LACP)

Uni-directional Link Detection (UDLD)

Ethernet Ring Protection Switching (ERPS)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

Security

IEEE 802.1x, Radius and TACACS+ perfect security authentication mechanisms

Storm/multicast/unicast limit

Perfect ring detection mechanism

IP Source Guard, DoS Protection, Anti-attack from DDoS

L2/L3/L4 ACL flow identification and filtration

Dynamic Arp Inspection

See more

Management

CLI via console port or Telnet

Web management

SNMP v1, v2c, v3

Firmware upgrade and configuration file upload/download via TFTP/HTTP/FTP server

Dual images (SPAN, RSPAN), multiple configuration files

Firmware auto upgrade RMON

LLDP (802.1ab)

See more

Quality Certifications
To get the detailed certification, please go to the .

ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please to learn more.

ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).

This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please to learn more.

This product is in conformity with ISO14001. It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please to learn more.

This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please to learn more.

This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please to learn more.

This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please to learn more.

Connectivity Solutions

Simplified Office Networking Solution
Retail Networking Solution

#11552

US$20.00

#40180

US$4.30

#149848

US$589.00

#149851

US$5,299.00

#149852

US$7,959.00

#67991

US$39.00

#68017

US$43.00

#149849

US$889.00

#17931

US$39.00

#108710

US$1,599.00

#29838

US$7.00

#65841

US$26.00

#115385

US$3,659.00

#30849

US$11.00

#43132

US$4.90

#163157

US$99.00

#66799

US$1.90

#139597

US$59.00

#90130

US$229.00

#149656

US$159.00

US$20.00

US$4.30

US$589.00

See more

Features

Gigabit Port Configuration
S3150-8T2F switch is a Layer 2+ Gigabit switch with fixed 1G RJ45 ports and 1G SFP fiber ports for uplinks.

20 Gbps
Switching Capacity
15 Mpps
Forwarding Rate
L2+
Layer Type
Fanless, Noiseless Design

Extend your network without disrupting your quiet office environment.

Voice VLAN Gives Priority to Guaranteeing VoIP Quality

Voice VLAN improves voice traffic transmission priority and guarantees voice quality by assigning voice traffic to a dedicated VLAN without competing with other traffic.

DHCP Accelerates Network Deployment

DHCP dynamically allocates IP addresses, simplifies IP address management, it saves more management time and costs and is more secure.

QoS (Quality of Service) for Better Traffic Control
Provides different priorities to different applications, users, or data flows to reduce packet loss,
latency, and jitter on a network.

Uncontrolled traffic causes network congestion and packet loss

Classify and prioritize traffic for optimum efficiency
Dimensions (HxWxD)
1.73”x11.02”x7.08” (44x280x180mm)
1.73”x11.02”x7.08” (44x280x180mm)
1.73”x17.32”x8.27” (44x440x210mm)
Weight
3.41 lbs (1.55kg)
3.70 lbs (1.68kg)
4.41 lbs (2kg)
Ports
8x 10/100/1000BASE-T
2x 1G SFP
8x 10/100/1000BASE-T
2x 1G SFP
24x 10/100/1000BASE-T
4x 1G SFP
PoE Ports
—
PoE+/PoE
—
Switching Capacity
20 Gbps
20 Gbps
56 Gbps
Forwarding Rate
15 Mpps
15 Mpps
42 Mpps
Power Supplies
1 Built-in, AC
1 Built-in, AC
1Built-in, AC
Fans
Fanless
Fanless
Fanless
Max. Power Consumption
8.6W
9.2W (130W with PoE)
15W
Power Budget
—
130W
—
Voice VLAN

Yes

Yes

Yes
802.1X

Yes

Yes

Yes

Videos

00:46
01:06
01:22

00:46
01:06
01:22

Questions & Answers
Ask a question

All (19)802.1x (1)ACL (1)Configuration (1)Documents (1)LACP (1)VLAN (1) More + More
Q:

Hello, does this product S3150-8T2F can be used as a VLAN access switch?

by T***e on 12/08/2023

A:

Yes, it is designed with the capability to create VLANs (Virtual Local Area Networks) which allows for the segmentation of networks within the switch.

by FS.com on 12/09/2023

Helpful 0

Showing 0 Comment

See more answers (0)

There is no answer for the moment. or you can

Q:

I need SNMP-Write so that I can lock and unlock SNMP interfaces via my NAC system and automatically untag VLANs. Please provide feedback on whether the switch supports this.

by D***n on 12/07/2023

A:

Hello, you can achieve your requirements by using the corresponding OIDs in the MIB file, which allows you to carry out port down/up operations as well as VLAN configurations.

by FS.com on 12/08/2023

Helpful 0

Showing 0 Comment

See more answers (0)

There is no answer for the moment. or you can

Q:

Hello, you can achieve your requirements by using the corresponding OIDs in the MIB file, which allows you to carry out port down/up operations as well as VLAN configurations.

by A***o on 11/20/2023

A:

Hello, the S3150-8T2F supports both a CLI interface and a web browser interface for configuring the switch.

by FS.com on 11/21/2023

Helpful 0

Showing 0 Comment

See more answers (0)

There is no answer for the moment. or you can

Q:

Does the S3150-8T2F support IP routing through static routes?

by P***s on 11/07/2023

A:

Yes, the S3150-8T2F supports IP routing through static routes.

by FS.com on 11/08/2023

Helpful 0

Showing 0 Comment

See more answers (0)

There is no answer for the moment. or you can

Q:

I would like to know if this switch comes with mounting brackets included. Please reply as soon as possible.

by F***e on 10/24/2023

A:

Hello, this switch does come with 2 mounting brackets. For more details, you can refer to

by FS.com on 10/25/2023

Helpful 0

Showing 0 Comment

See more answers (0)

There is no answer for the moment. or you can

Q:

Does S3150-8T2F allow for LACP configuration?

by T***s on 09/25/2024

A:

Yes, it does. LACP (Link Aggregation Control Protocol) increases its logical bandwidth and network reliability and provides link-level redundancy in network failure and load-balance traffic, improving the reliability of the access layer network. LACP can simplify network management by reducing the number of physical links that need to be managed and configured.

by FS.com on 09/25/2024

Helpful 0

Showing 0 Comment

See more answers (0)

There is no answer for the moment. or you can

See more
See all questions
  • 1

  • 2
  • 3

  • 4

Your comment was successfully submitted.

Please allow 1-2 business days for the comment to become visible.

Customer Reviews
Write a review

4.8
(10 reviews)
4.8
5
stars
4
stars
3
stars
2
stars
1
star
8
2
0
0
0

a
a***a
February 28, 2024 Reunion
Verified Purchase
5.0
Products: S3150-8T2F | 8x RJ45, 2x SFP

excellent produit délai de livraison très rapide merci

Helpful 0

G
G***d
December 08, 2023 United Kingdom
Verified Purchase
5.0
Products: S3150-8T2F | 8x RJ45, 2x SFP

Robust construction and outstanding performance, which really benifits my work.

Helpful 3

D
D***t
December 04, 2023 Australia
Verified Purchase
5.0
Products: S3150-8T2F | 8x RJ45, 2x SFP

5.0 out of 5 stars. Worked great to grow the network!! Plug and play and works perfectly!! Would recommend it.

Helpful 2

E
E***n
November 29, 2023 United States
Verified Purchase
5.0
Products: S3150-8T2F | 8x RJ45, 2x SFP

The size is good and it functions very fine a switch.

Helpful 2

G
G***a
November 16, 2023 United States
Verified Purchase
4.0
Products: S3150-8T2F | 8x RJ45, 2x SFP

The product is of good quality, I was able to connect my computer using it. It slowed it down significantly though. For most people this probably doesn’t matter much and you can use it for multiple devices which is good.

Helpful 2

R
R***n
October 21, 2023 Canada
Verified Purchase
5.0
Products: S3150-8T2F | 8x RJ45, 2x SFP

One of the best network switches on the market, a good option for business use.

Helpful 3
